BS Spice pulverizer Set

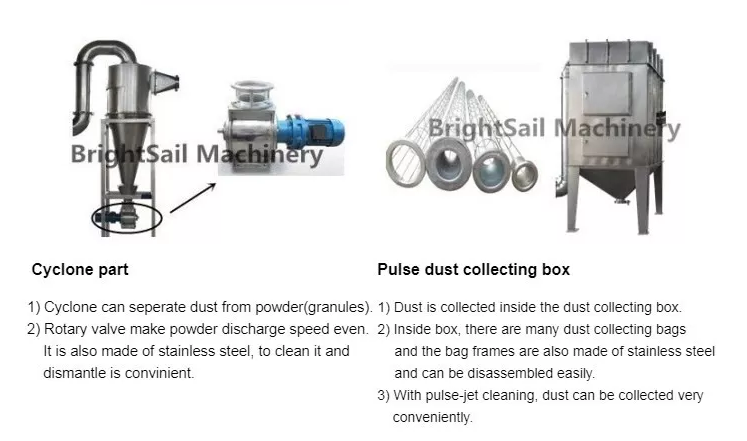

The machine is made up of crusher part, cyclone, dust collecting box, blower and control box.It uses fixed plate and the relative
motion between the activity hammer, making materials impacted and shredded under effect of centrifugal force.
BS spice pulverizer set has a very good effect for different kinds of spices, like chilli, pepper, cinnamon, cumin, bandits,
cardamom, garlic, star anise, cloves, geraniol, turmeric, ginger, fennel, angelica and other material with high content of oil or
fiber. For root, herb and leaf, the grinding effect is also good.
With hammer type knife, this machine has a very good effect for milling spice,like chilli,cumin,turmeric....etc
* The particle size can be easily adjusted by changing the hammer rotation speed as well as the screen size.
* The Hammer Mill is a suitable grinder for a wide variety of materials including heat sensitive ones.
* The pressure loss of the machine is very low, making it easy to incorporate the machine into any process line.

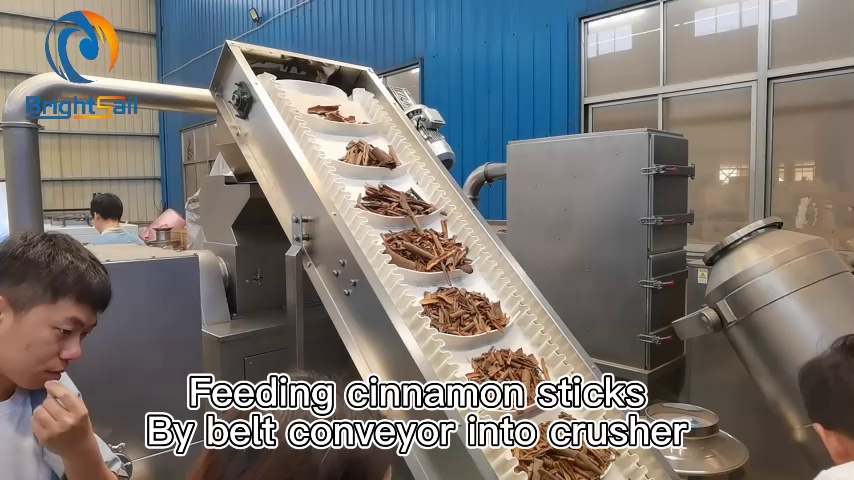

Below is the a complete processing line for various kinds of spice and herb powder making:
|
Model |
BS-400 |
BS-630 |
BS-880 |
BS-1000 |
|
Production capacity (kg/h) |
80-1000 |
400-1500 |
800-2000 |
1000-2500 |
|
Output size(mesh) |
20-120 |
20-120 |
20-120 |
20-120 |
|
Main motor power(KW) |
18 |
30 |
37 |
45 |
|
Overall size (L*W*H)(mm) |
5400*1300*2700 |
6800*1300*2700 |
7800*1800*3200 |
8800*2000*3300 |
And we have High-efficient Mill
This machie is developed with the method of mixed powder jetting, which is widely applied for the materials grinding for the trades of pharmaceutics,chemical,and foodstuff etc.
This machine has a very good effect for tea leaf crushing.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
|
Model |
BSF-8 |
BSF-16 |
BSF-32 |
|
Capacity (kg/h) |
10-100 |
50-300 |
100-500 |
|
Fineness of powder (mesh) |
12-120 |
12-120 |
12-120 |
|
Power (KW) |
3 |
7.5 |
11 |
|
Speed (rpm) |
2350-4360 |
1000-2400-4400 |
1000-2400-4400 |
|
Overall size (L*W*H) |
1050*600*1600 |
1100*860*1600 |
1280*950*1600 |
|
Weight (kg) |
150 |
250 |
320 |
Jiangyin Brightsail Machinery focuses on one-stop overall powder process solutions.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: What is your delivery terms?
A: possible delivery terms are EXW, FOB, CIP and other according to agreement with the customer.
Q: Is the control Spice pulverizer Set by PLC?
A: For most filling and packing machines, the control is by PLC.
For other machines, the standard control we use is button type. If customer requests PLC,we can also add PLC on the control, it is no problem.
Q:Whats your before & after service?
A:1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
5)one year guarantee. Whole life service. Within1 year, any problem part can send to us, we can give provide free new part(onlydamaged by machine itself).
6) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
This is our BS Spice pulverizer Set to grinding dry turmeric,
Capacity can reach 100-800 kg per hr
And this is our BS-400 hammer mill, we are grinding beat root

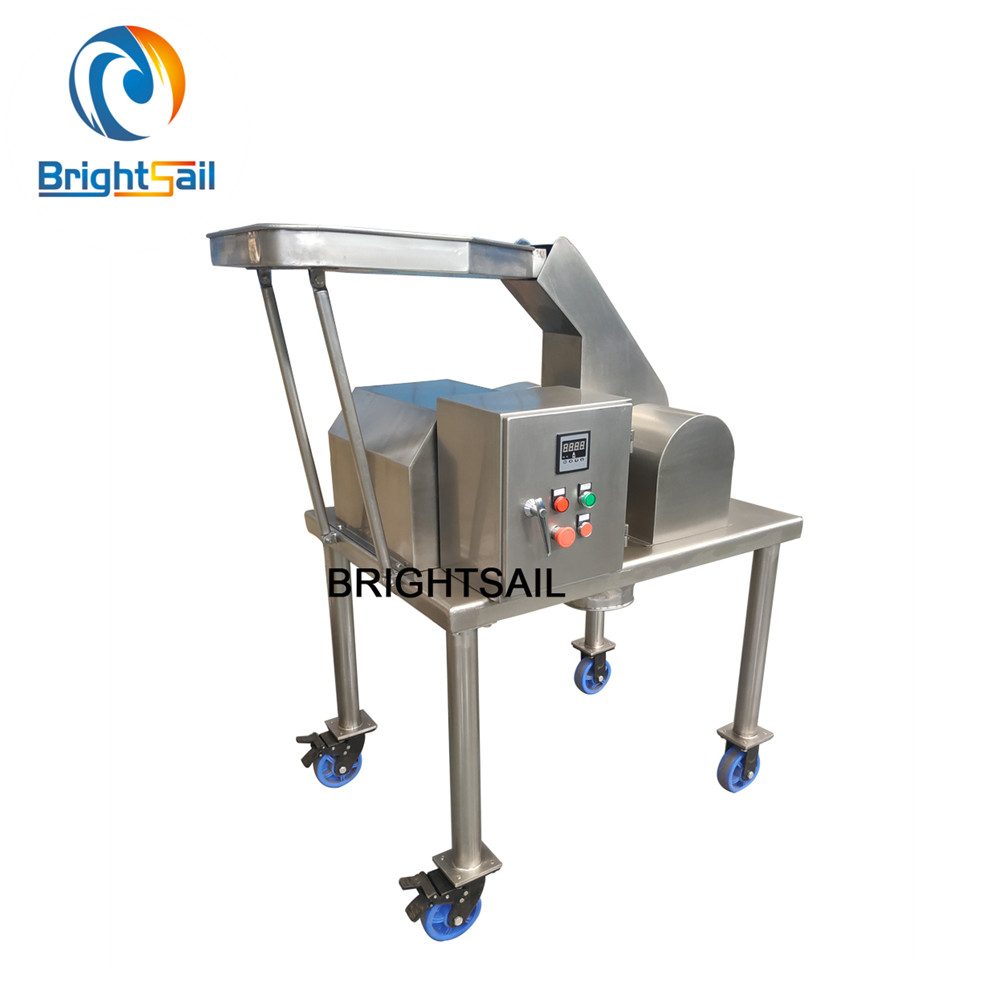

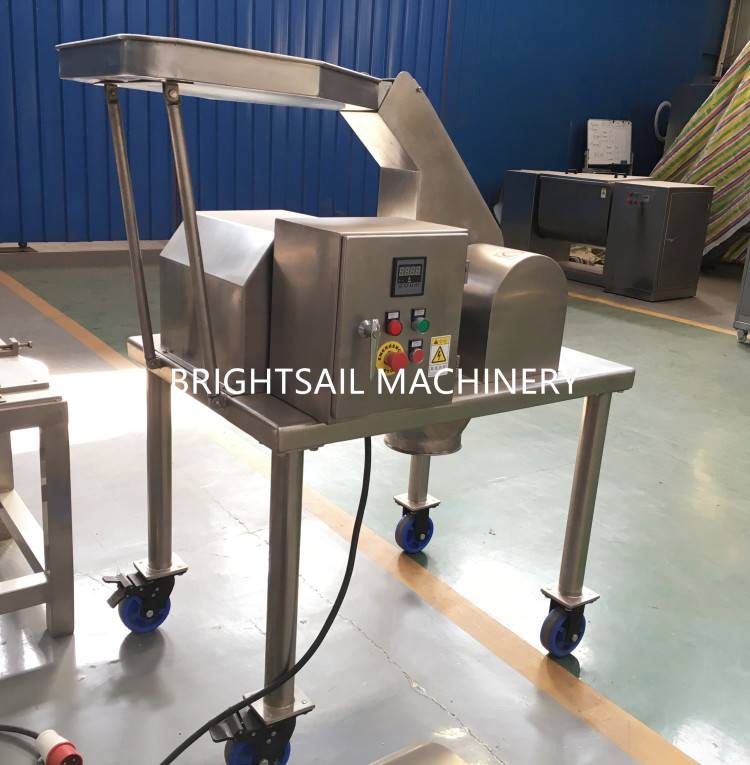

In this video,its our BSF Fitz Mill,crusher licorice powder
the fineness can reach 12-120 mesh
