BSQC Series Double Head Vegetable Cutting Machine
The BSQC vegetable cutting machine is also called three-dimensional dicing machine. It is suitable for processing a variety of roots, stems and vegetables into cubes and cuboid shapes in a variety of fruits, dehydrated vegetables, quick-frozen vegetable processing plants and food pickles. The machine adopts compound cutter, which is formed in one time, with regular shape, smooth cut surface and high forming rate.
Main Features:
1.High efficiency ,easy to operate and clean.
4.Just need to put the vegetable into the inlet so that the material will come out from the other side with high efficiency.
5.Special design,compact structure,safe and higenic

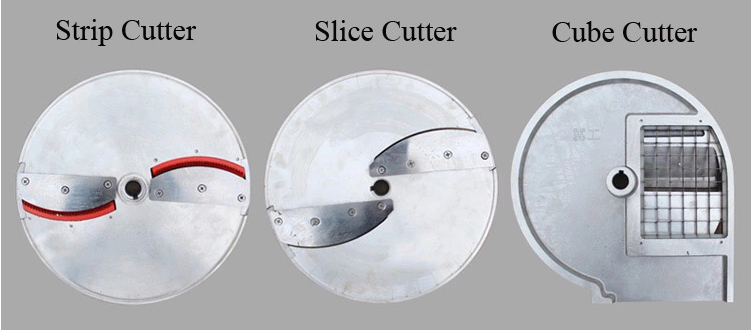

object to be cut is cut into pieces by means of a vertical knife, and then cut into strips by a disc cutter, and the material to
be cut is sent into the horizontal direction. The cutting edge is cut, and the cube or rectangular parallelepiped is cut by a
cross cutting knife, and the cutting specifications can be customized.
BSQC-I vegetable cutting machine
|
Model |
BSQC-I |
|
Overall dimension (mm) |
600 (L) * 500 (w) * 900 (H) |
|
Cutting size (mm) |
Slice 2-10, shred 2-8, and dice 8-20 |
|
Capacity (kg/h) |
200-1000 |
|
Power supply |
220V single-phase / 380V, three-phase |
|
Power (KW) |
About 1.5 kw |
|
Machine weight (kg) |
70kg |
Working Principle:
the object, the object to be cut is cut into pieces by means of a vertical knife, and then cut into strips by a disc cutter, and
the material to be cut is sent into the horizontal direction. The cutting edge is cut, and the cube or rectangular parallelepiped
is cut by a cross cutting knife, and the cutting specifications can be customized.
2.The cutting surface is smooth, regular,and beautiful.
3.It is made of SUS 304.
4.Just need to put the vegetable into the inlet so that the material will come out from the other side with high efficiency.
5.Special design,compact structure,safe and higenic.
Products Advantages:1.Suitable for cutting, slicing and dicing root and stem vegetable, also suitable for cutting leafy vegetables
into different size length.
2. Frame made with SUS304, cutter head and plate made with aluminium magnesium alloy.
3. VFD control the cutting and mesh belt moving speed.
4. High efficiency, equals to 10 workers.
|
Model |
BSQC-II |
|
Overall dimension (mm) |
About 1250(L)*500(w)*1250(H) |
|
Cutting size (mm) |
Slice 2-10, shred 2-8, dice 8-20, |
|
Capacity (kg/h) |
300-1000 |
|
Belt Width(mm) |
120 (adjustable speed) |
|
Power supply |
220V single-phase / 380V, three-phase |
|
Power (KW) |
About 2.25 |
|
Machine weight (kg) |
135 |
Jiangyin Brightsail Machinery focuses on one-stop overall powder process solutions.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q：Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
Q: What is your delivery terms for Vegetable Cutting Machine?
A: possible delivery terms are EXW, FOB, CIP and other according to agreement with the customer.
Q:What factors I need to get a quotation?
A: Name of materials; Capacity per hour; Mesh size
This is our BS vegetable cutting machine,
Suitable for many materials, such as Onions, chilli , etc
