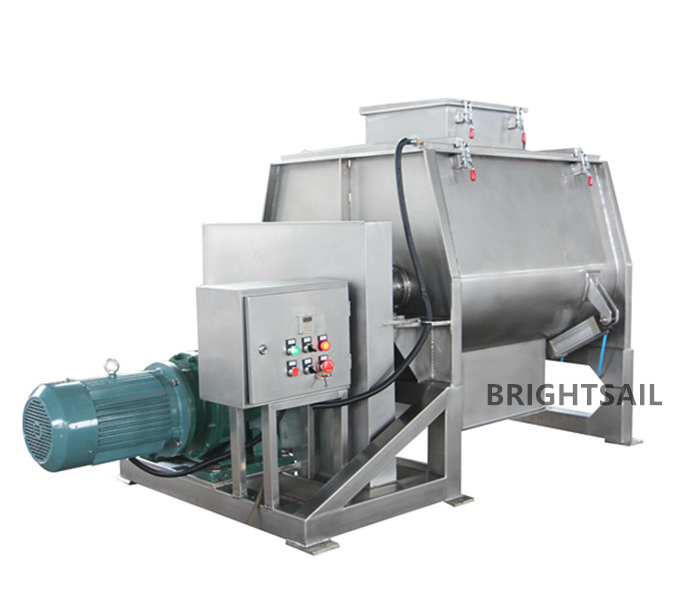

BSL Series Double Shaft Paddle Mixer
.jpg)
The BSL Double Shaft Paddle Mixer Machine is equipped with 2 horizontal paddle shafts, there are paddles on each shaft. Driven by the directly-connected reducer, 2 paddle shafts rotate reversely to make paddle move fast. The rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth to make it evenly.
If the material is large, the mixer can add shear blades, then the big material can be broken up, scattered, obtained satisfactory mixing effect via the shear blades in a relatively time.
|
Model |
Work |
Speed(rpm) |
Motor power |
Overall size (L*W*H) |
Weight |
Output size |
|
BSL-100 |
60L |
2*57 |
3 |
1320(L)*700(W)*700(H) |
320 |
2*200*50 |
|
BSL-300 |
180L |
2*57 |
4 |
1242(L)*1278(W)*1025(H) |
750 |
2*250*60 |
|
BSL-500 |
300L |
2*51 |
5.5-7.5 |
1412(L)*1410(W)*1230(H) |
1000 |
2*300*80 |
|
BSL-1000 |
600L |
2*43 |
11-15 |
1875(L)*1610(W)*1350(H) |
1550 |
2*350*120 |
|
BSL-2000 |
1200L |
2*43 |
18.5-22 |
2312(L)*2160(W)*1775(H) |
2500 |
2*350*120 |
|
BSL-3000 |
1800L |
2*36 |
22-30 |
2408(L)*2400(W)*1955(H) |
2900 |
2*350*120 |
|
BSL-4000 |
2400L |
2*36 |
30-37 |
2822(L)*2546(W)*2015(H) |
3600 |
2*360*140 |
|
BSL-6000 |
3600L |
2*29 |
37-45 |
3075(L)*2980(W)*2235(H) |
5600 |
2*700*140 |
|
BSL-8000 |
4800L |
2*29 |
45-55 |
3278(L)*3426(W)*2425(H) |
7100 |
2*700*140 |
|
BSL-10000 |
6000L |
2*29 |
55-75 |
3538(L)*3645(W)*2615(H) |
8000 |
2*800*140 |
Safety net:
There is a safety net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
Paddle shafts inside the mixer: make the mixing effect better.
Seals on both sides of mixer: PTFE packing seals (packing) are adopted on both sides of our paddle mixer, so powder will not leak into bearing and powder leakage will not happen
Discharge part: Pneumatic valve is adopted to discharge material. Mixing dry powder or powder with a little liquid are applicable.
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: Which city are you from?
A: We are in Jiangyin,Jiangsu. It is near Shanghai, by car, from Shanghai to Jiangyin, it takes ~ 2 hours.
Q: What is the material of the Double Shaft Paddle Mixer machine?
A: Stainless steel 304 is our standard material.
Sometimes,we also use SS316 as customer requests.
Q: Can the Double Shaft Paddle Mixer machine size be customized?
A: Yes, maybe we can. You shall tell us the room size of your factory, so we can adjust the design to fit in your space, we can try it.

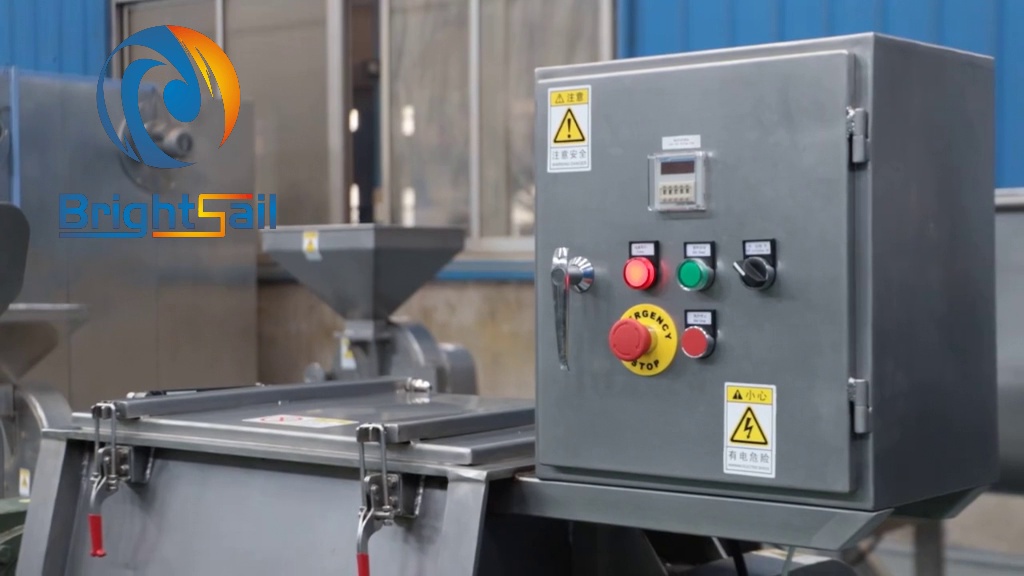

In this video is our BSL double paddle mixer ,or powder with a little liquid
This is our BSL-300 double paddle mixer
