BST Series Trough Shaped Mixer

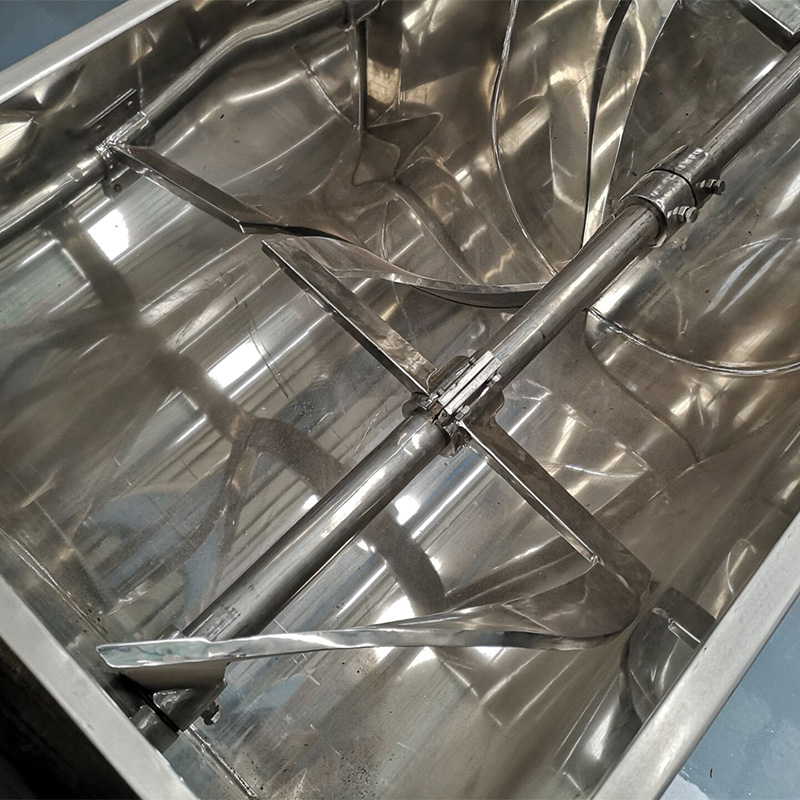

This type of mxier is suitable for mixing of target materials in powder or paste state evenly.By driving of mechanism of the
mixer ,the S shape blade turns target materials to-and-fro to mix it evenly.
Specifications:
1 chemical blender mixer
2 stainless steel 304
3 can mix liquid and powder
4 with CE
|
Model |
Barrel volume(L) |
Mixing speed(rpm) |
Mix motor(KW) |
Dumping motor(KW) |
overall size(L*W*H)(mm) |
Weight(kg) |
|
BST-50 |
50 |
24 |
1.5 |
0.75 |
1200×500×600 |
320 |
|
BST-100 |
100 |
24 |
2.2 |
0.75 |
1400×580×1000 |
350 |
|
BST-150 |
150 |
24 |
3 |
0.75 |
2000×630×1150 |
410 |
|
BST-200 |
200 |
24 |
4 |
1.1 |
2300×750×1350 |
450 |
|
BST-300 |
300 |
24 |
5.5 |
1.5 |
2700×850×1500 |
520 |
|
BST-500 |
500 |
24 |
7.5 |
2.2 |
2700×800×1400 |
800 |
|
BST-1000 |
1000 |
24 |
15 |
3 |
3350×1100×1550 |
1400 |
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: What is the brand of the motors, inverters and electrical parts?
A: If customers need more cost-effective machine, we will recommend good quality Chinese brand. If customers have enough budget and want better parts, we will use Siemens,ABB,Schneider,WEG,SEW...etc
Q: Is the control Trough Shaped Mixer by PLC?
A: For most filling and packing machines, the control is by PLC.
For other machines, the standard control we use is button type. If customer requests PLC,we can also add PLC on the control, it is no problem.
Q：Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.

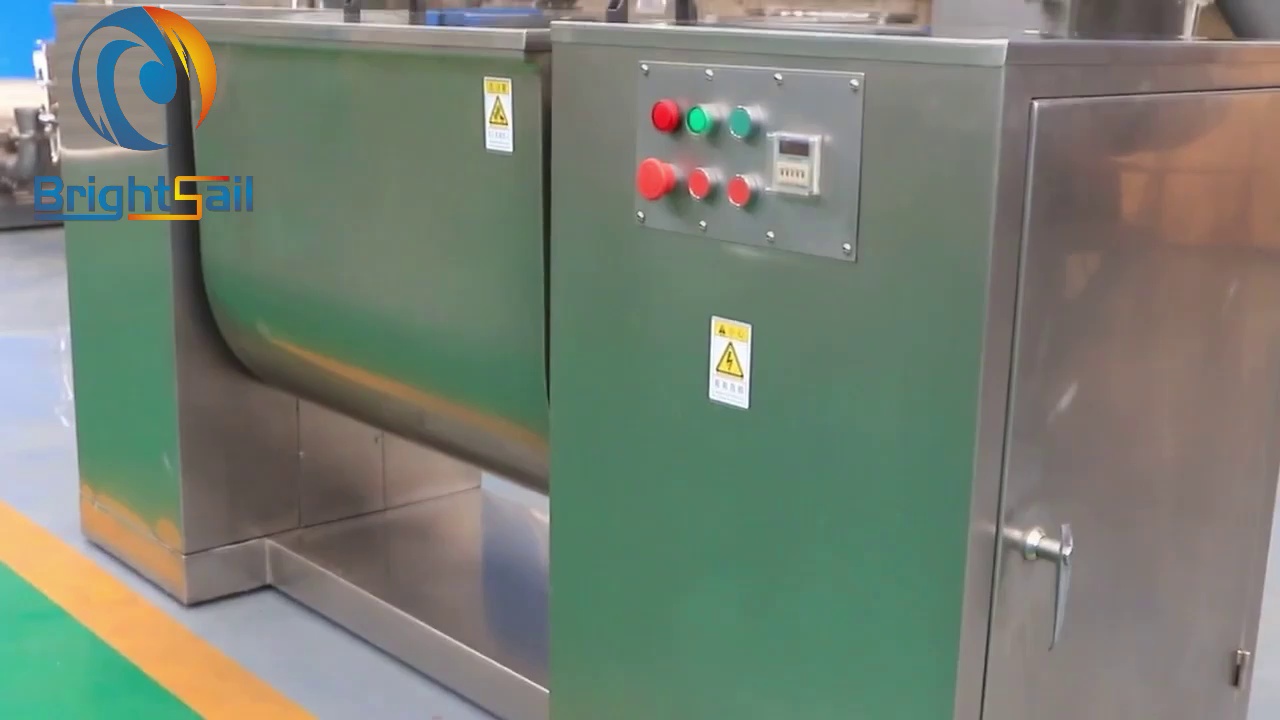

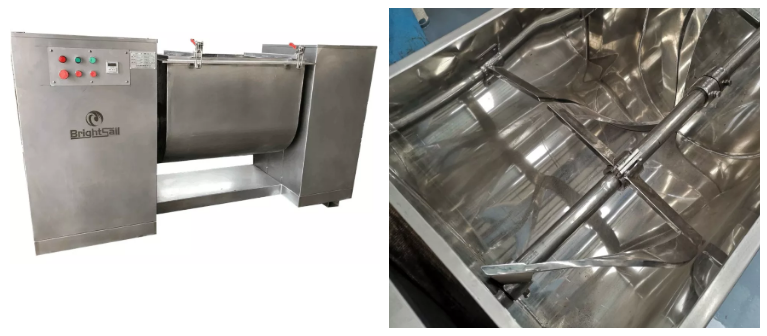

This is our Trough Shaped Powder Mixer Machine
It is a horizontal through type mixer with single or double stirring arm
