Tea Leaves Powder Grinding Machine
We usually use three kinds of equipment to crush Tea Leaves Powder Grinding Machine

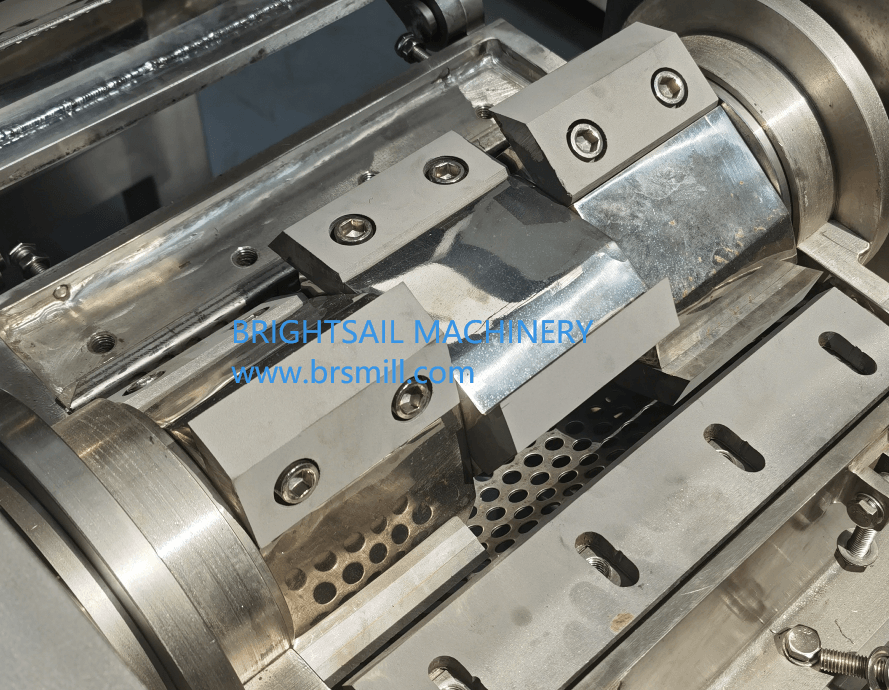

BSC Tea Leaves Coarse Crusher ,Crush the tea into granules, usually 2-3 mm
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
Technical Data of Tea Leaves Coarse Crusher:
|
Model |
BSC-200 |
BSC-300 |
BSC-400 |
BSC-600 |
BSC-1000 |
|
Capacity(kg/h) |
80-300 |
100-800 |
200-1000 |
500-1500 |
1000-2500 |
|
Size of input granules (mm) |
<100 |
<100 |
<100 |
<100 |
<100 |
|
Crushing Fineness(mm) |
0.5-20 |
0.5-20 |
0.5-20 |
0.5-20 |
0.5-20 |
|
Rotor speed (rpm) |
530 |
530 |
530 |
530 |
540 |
|
Motor power(KW) |
3 |
5.5 |
7.5 |
11 |
15 |
|
Overall Size(L*W*H)(mm) |
600*500*1228 |
720*700*1303 |
900*700*1306 |
1020*700*1306 |
1330*850*1826 |
|
Weight(Kg) |
200 |
300 |
380 |
500 |
1000 |
After getting a coarse particle, we can go into the crusher to get a fine powder, and we generally recommend these two type
BSC small Tea Leaves hammer mill Fineness can reach 10-60 mesh:
_副本.jpg?x-oss-process=image/resize,w_100/quality,q_100)
|
Model |
BS-180 |
BS-250 |
BS-350 |
|
Feed size (mm) |
< 10 (granule) < 15*40*2 (leaf) |
||
|
Grind fineness (mesh) |
10-120 |
10-120 |
10-120 |
|
Capacity(kg/hr) |
3-50 |
10-100 |
30-300 |
|
Grind chamber diameter(mm) |
200 |
270 |
380 |
|
Rotor speed (rpm) |
5900/8600 |
4200/6200 |
2200/4400 |
|
Motor (kw) |
2.2 |
5.5 |
11 |
|
Overall size (mm) |
840*470*1020 |
930*600*1200 |
1150*700*1600 |
|
Weight(kg) |
~112 |
~210 |
~430 |
|
Model |
BSP-250 |
BSP-350 |
BSP-450 |
BSP-500 |
BSP-750 |
BSP-900 |
BSP-1000 |
|
Capacity (kg/h) |
10-100 |
20-200 |
40-500 |
50-800 |
120-1800 |
800-2500 |
1000-3600 |
|
Input size (mm) |
＜ 8 |
＜ 15 |
＜ 15 |
＜ 15 |
＜ 15 |
＜20 |
＜20 |
|
Powder fineness (mesh) |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
|
Crush motor (kw) |
5.5 |
15 |
18.5 |
30 |
55 |
90 |
110 |
|
Classifier motor (kw) |
1.5 |
1.5 |
4 |
5.5 |
11 |
15 |
18.5 |
|
Blower (kw) |
4 |
5.5 |
11 |
18.5 |
37 |
45 |
75 |
|
Feed motor (kw) |
0.37 |
0.55 |
0.55 |
1.1 |
1.5 |
2.2 |
2.2 |
|
Discharge motor (kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
1.5 |
|
Speed of principle axis (rpm) |
~8400 |
~6500 |
~5600 |
~4400 |
~3100 |
~2450 |
~2450 |
|
Grading impeller speed (rpm) |
~4000 |
~4000 |
~4000 |
~3500 |
~3000 |
~3000 |
~3000 |
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: What certificate do you have?
A: We have CE,ISO certificates.
If you need other certificates, please contact us to check.
Q: How to install the Tea Leaves Powder Grinding Machine?
A: 99% clients can install the machine by themselves under our guidance by our English electric diagram, and English manual.
Video call is also optional.
Engineer is also available to serve on site,buyer shall cover some cost.
Q: Which city are you from?
A: We are in Jiangyin,Jiangsu. It is near Shanghai, by car, from Shanghai to Jiangyin, it takes ~ 2 hours.
In this video we first crush the tea leaves into granules
this is our BSC-1000 Tea Leaves Powder Coarse Crusher
In this video ,is our BS Tea Leaves Powder small hammer mill
it can make powder is 12-80 mesh
In this video ,is our BS Tea Leaves Powder grinding machine
it can make powder is 120-500 mesh
