Cinnamon Grinding Machine

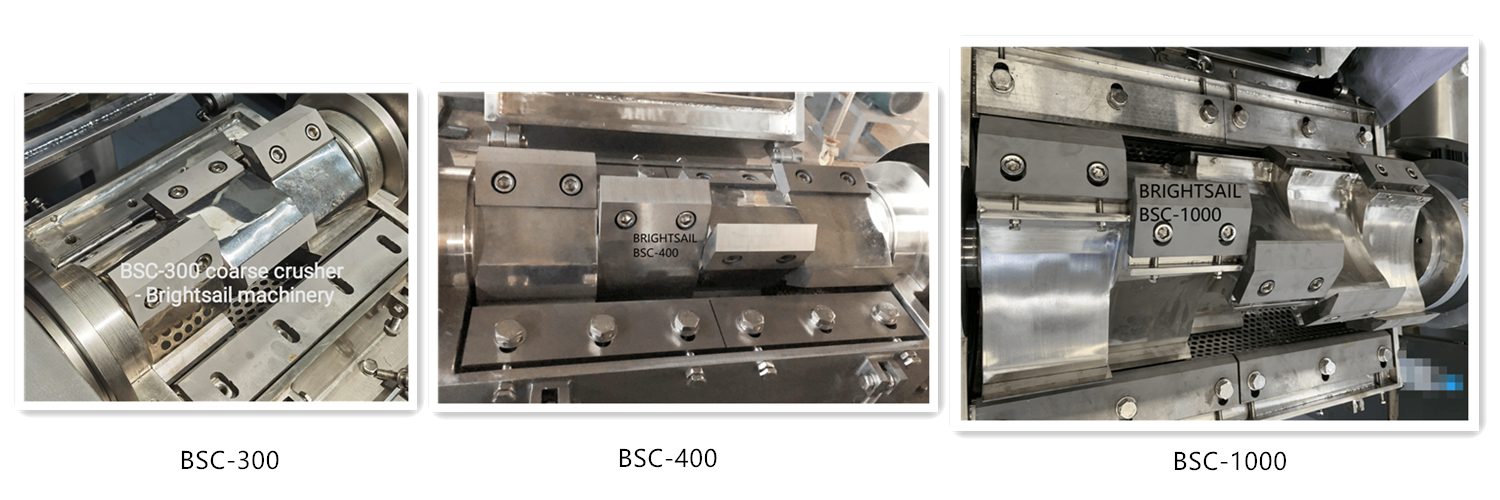

BSC Machine For Cinnamon granules:
Our coarse crusher has two functions mainly:
Application and work method of BSC Machine For Cinnamon granules:
Raw material is fed into the crush chamber through the feed hopper,then crushed and cut by the fixed and rotating knives in the chamber, and flows to the exit automatically under the effect of rotating centrifugal force.
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
Technical Data:
|
Model |
BSC-200 |
BSC-300 |
BSC-400 |
BSC-600 |
BSC-1000 |
|
Capacity(kg/h) |
80-300 |
100-800 |
200-1000 |
500-1500 |
1000-2500 |
|
Size of input granules (mm) |
<100 |
<100 |
<100 |
<100 |
<100 |
|
Crushing Fineness(mm) |
0.5-20 |
0.5-20 |
0.5-20 |
0.5-20 |
0.5-20 |
|
Rotor speed (rpm) |
530 |
530 |
530 |
530 |
540 |
|
Motor power(KW) |
3 |
5.5 |
7.5 |
11 |
15 |
|
Overall Size(L*W*H)(mm) |
600*500*1228 |
720*700*1303 |
900*700*1306 |
1020*700*1306 |
1330*850*1826 |
|
Weight(Kg) |
200 |
300 |
380 |
500 |
1000 |

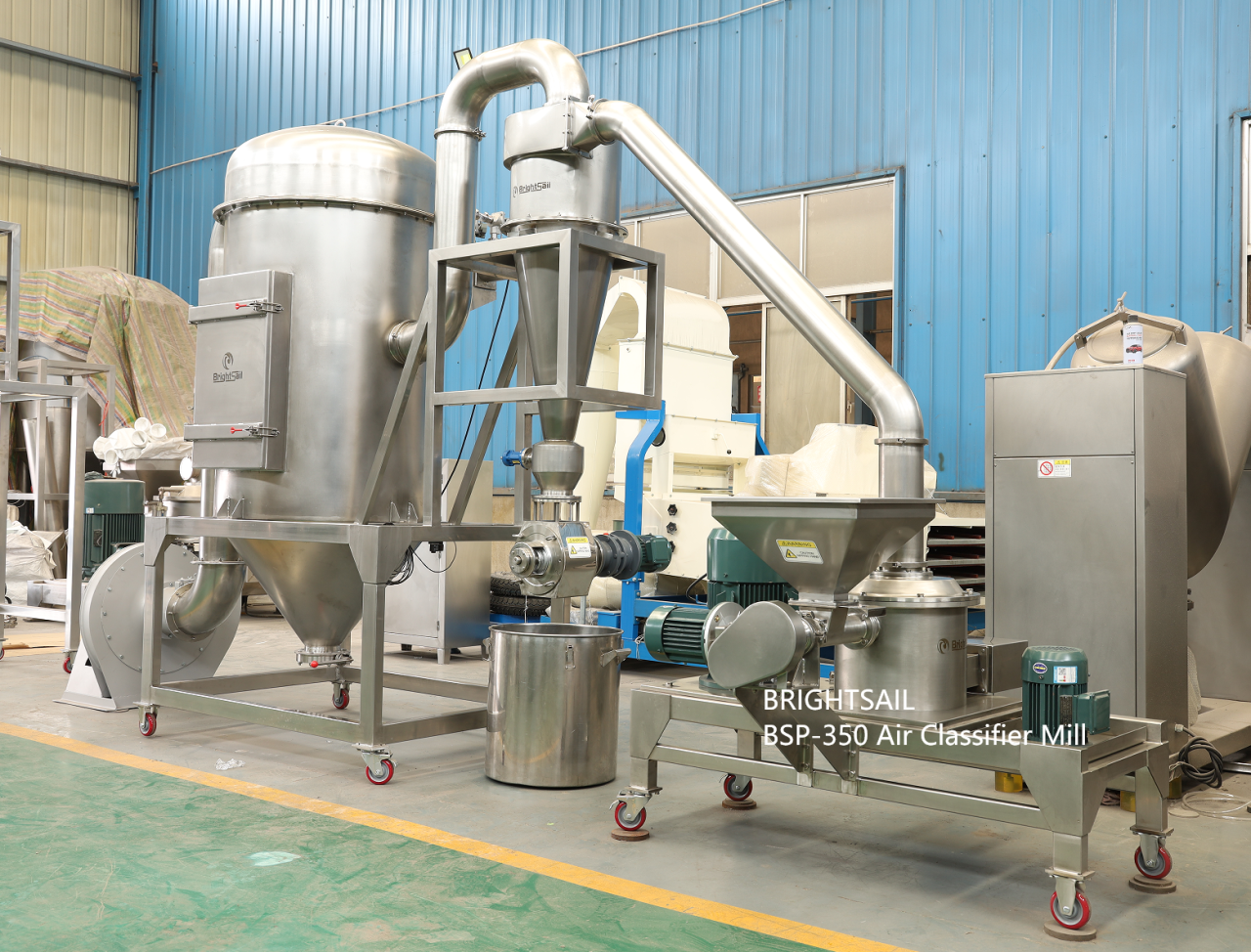

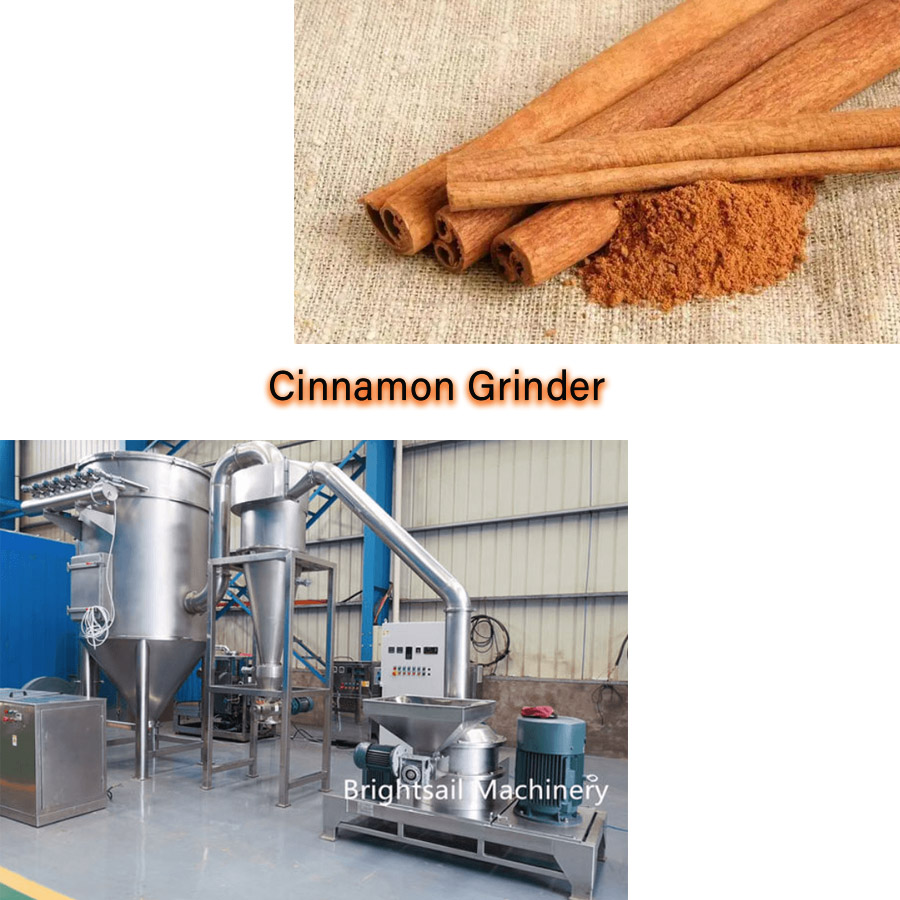

BSP Machine For Cinnamon Grinding Machine:
BSP cinnamon grinding mill ultra-fine particle mill Brightsail micron powder pulverizer machine for milling cinnamon the output size can be 60~1000 mesh fine powder.
.png?x-oss-process=image/resize,w_100/quality,q_100)
Technical Data:
|
Model |
BSP-250 |
BSP-350 |
BSP-450 |
BSP-500 |
BSP-750 |
BSP-900 |
BSP-1000 |
|
Capacity |
10-100 | 20-200 | 40-500 | 50-800 | 120-1800 | 800-2500 | 1000-3600 |
|
Input size |
<8 |
<15 |
<15 | <15 | <15 | <20 | <20 |
|
Powder fineness |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
60-2500 |
|
Crush motor |
5.5 | 15/18.5 | 18.5/22 | 30/37 | 55/75 | 90 | 110 |
|
Classifier motor |
1.5 | 1.5 | 4 | 5.5 | 11 | 15 | 18.5 |
|
Blower |
4 | 5.5 | 11 | 18.5 | 37 | 45 | 75 |
|
Feed motor |
0.37 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 |
|
Discharge motor |
0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
|
Speed of principle axis |
~8400 |
~6500 |
~5600 |
~4400 |
~3100 |
~2450 |
~2450 |
|
Classifier speed |
~4000 |
~4000 |
~4000 | ~3500 | ~3000 | ~3000 | ~3000 |
Brightsail ACM grinder can make 60~2500 mesh based on different raw material, for example:
For sugar and salt grinding, the output size can be 100~1000 mesh fine powder.
For herbal leaf grinding like licorice root, moringa leaf, green tea leaf, the output size can be 60~500 mesh.
For chemical powder grinding like Lithium Stearate, Zinc Stearate, tale, the output size can be 200~10000 mesh based on customer's requests.
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: What certificate do you have?
A: We have CE,ISO certificates.
If you need other certificates, please contact us to check.
Q: How to install the Cinnamon Grinding Machine?
A: 99% clients can install the machine by themselves under our guidance by our English electric diagram, and English manual.
Video call is also optional.
Engineer is also available to serve on site,buyer shall cover some cost.
Q: Which city are you from?
A: We are in Jiangyin,Jiangsu. It is near Shanghai, by car, from Shanghai to Jiangyin, it takes ~ 2 hours.
In this video we first crush the tea leaves into granules
this is our BSC-300 Cinnamon Coarse Crusher
In this video ,is our BSP Cinnamon grinding machine
it can make powder is 60-500 mesh
