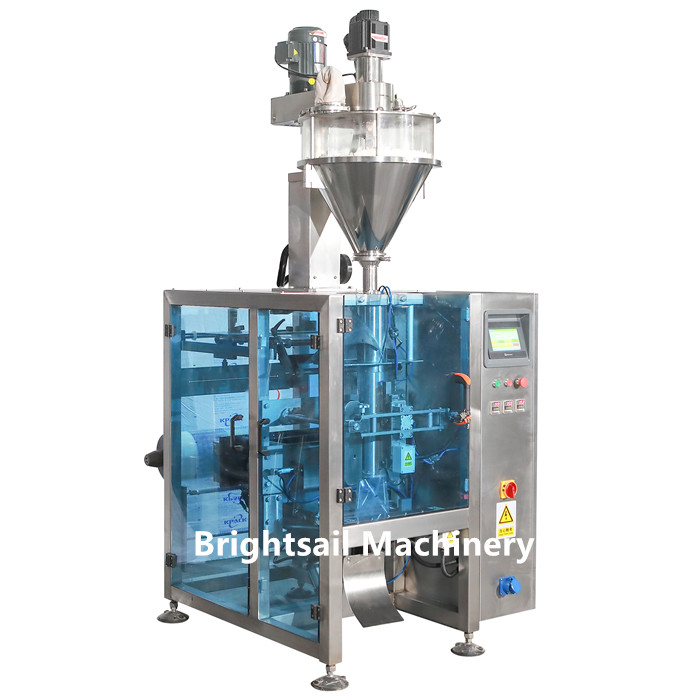

Automatic Powder Packing Machine System
BSPM powder packing machine packing machine for spice powders can do the work of bag-making, weighing, filling, filling the nitrogen, date coding, and bag-cutting.
It uses PLC Servo System, pneumatic control system and touch screen to compose the drive control center, which maximize the whole machine's control precision, reliability and intelligentized level.
2) High measuring accuarcy and efficiency.
3) Servo motor drives screw filling, easy to operate and debug.
4) PLC touch screen can store the technical parameters of various kinds of products, so no needs to reset while products changing.
5) With error indicating system, which help to handle the trouble immediately.
6) The hopper can be removed, easy to clean.
|
BSPM-320 |
BSPM-420 |
BSPM-520 |
BSPM-620 |
BSPM-720 |
|
|
Packing weight (g) |
≤200 |
≤500 |
≤1500 |
≤3000 |
≤4000 |
|
Power (kw) |
2.5 |
2.5 |
2.5 |
3.5 |
3.5 |
|
Packing speed (bag/min) |
25-60 (according to material characteristics and packing weight) |
||||
|
Bag shape |
back sealing |
||||

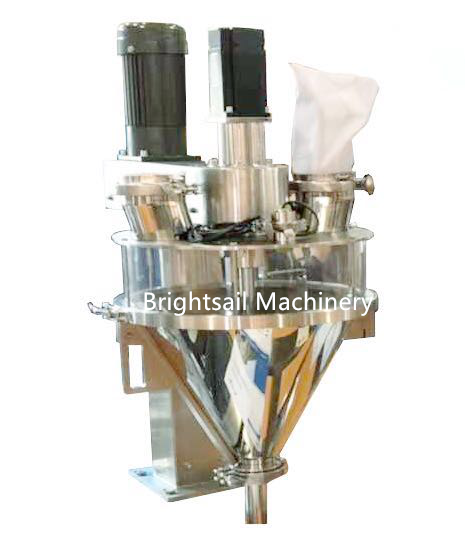

Screw measuring device
It is used to measure the packing weight, there are 25, 50, 70 L hoppers for your choices.

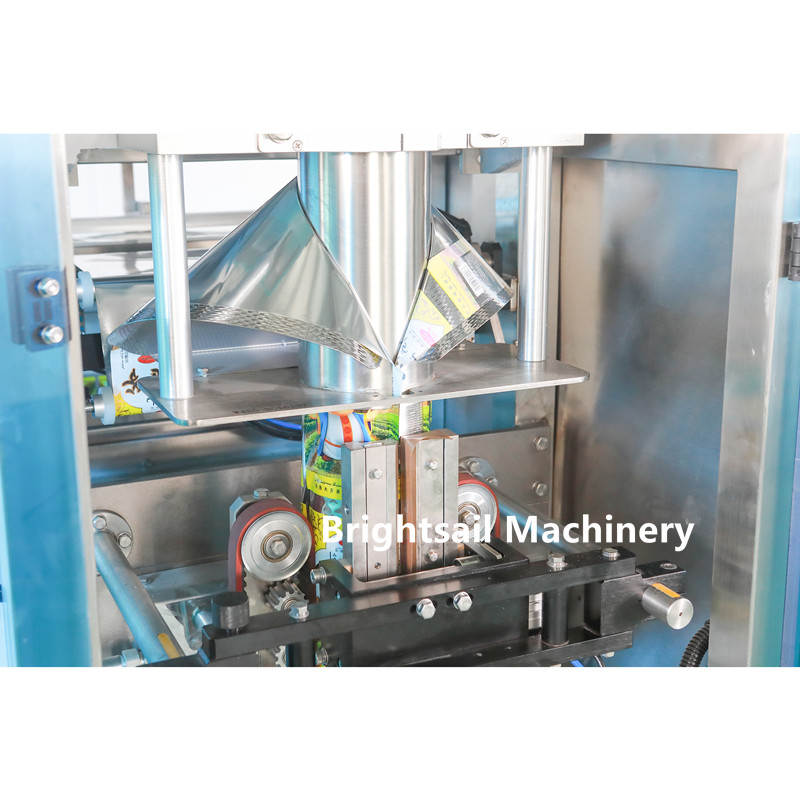

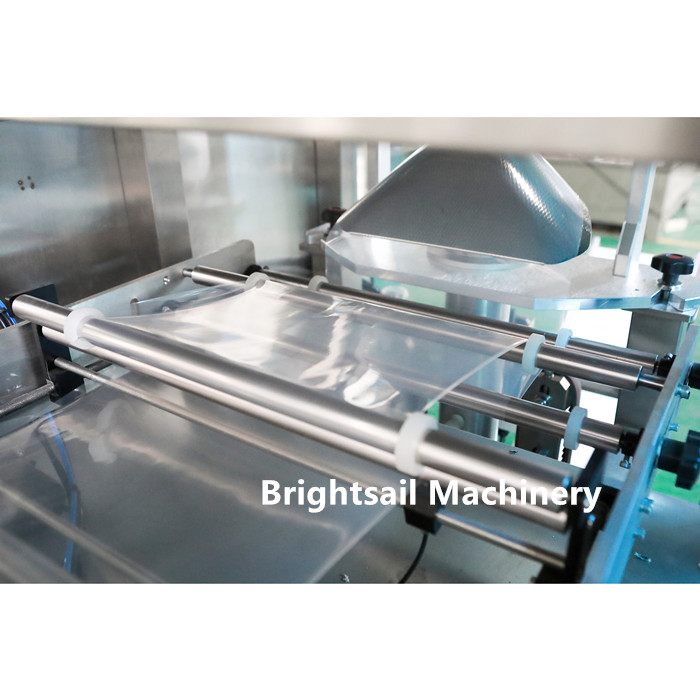

Vertical packing device (VFFS)
It is used to make bags, fill powder into bags, print date, seal and cut bags.
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: Is the control Automatic Powder Packing Machine System by PLC?
A: For most filling and packing machines, the control is by PLC.
For other machines, the standard control we use is button type. If customer requests PLC,we can also add PLC on the control, it is no problem.
Q：Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
Q: What is your delivery terms?
A: possible delivery terms are EXW, FOB, CIP and other according to agreement with the customer.

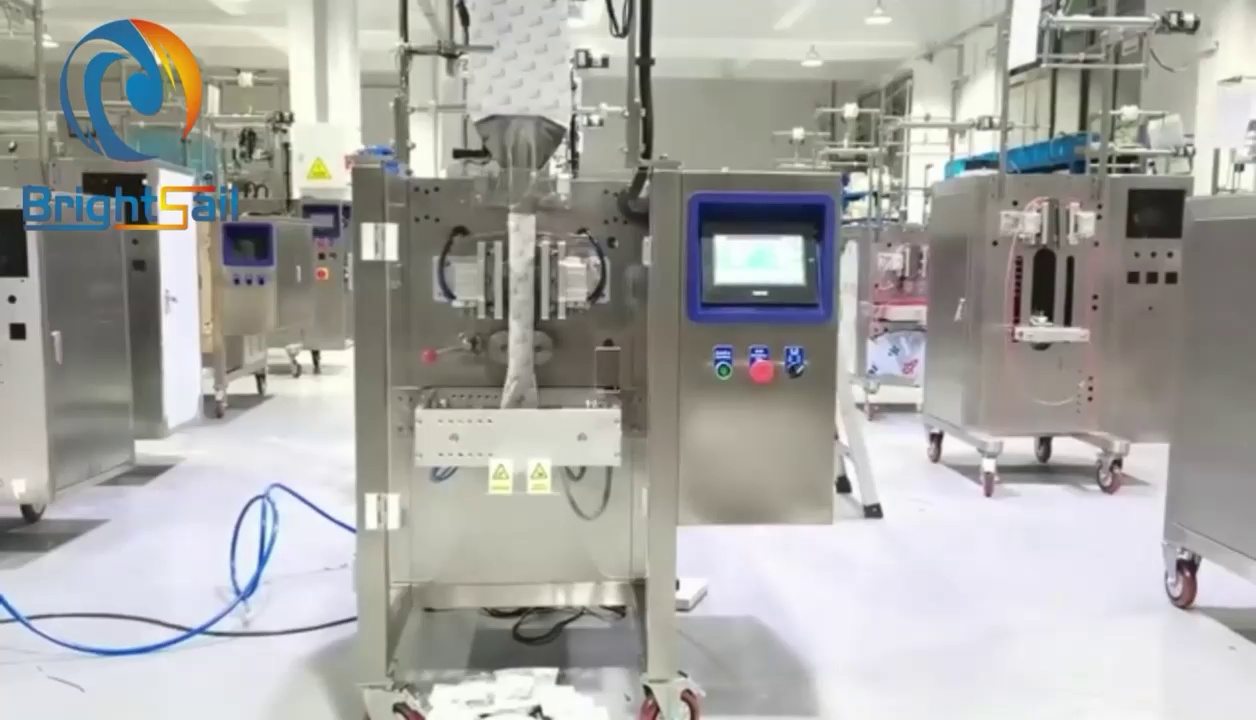

In the video is our Automatic Powder Packing Machine System
Fit to pack well flowing powder ,and fit to pack not well flowing powder
