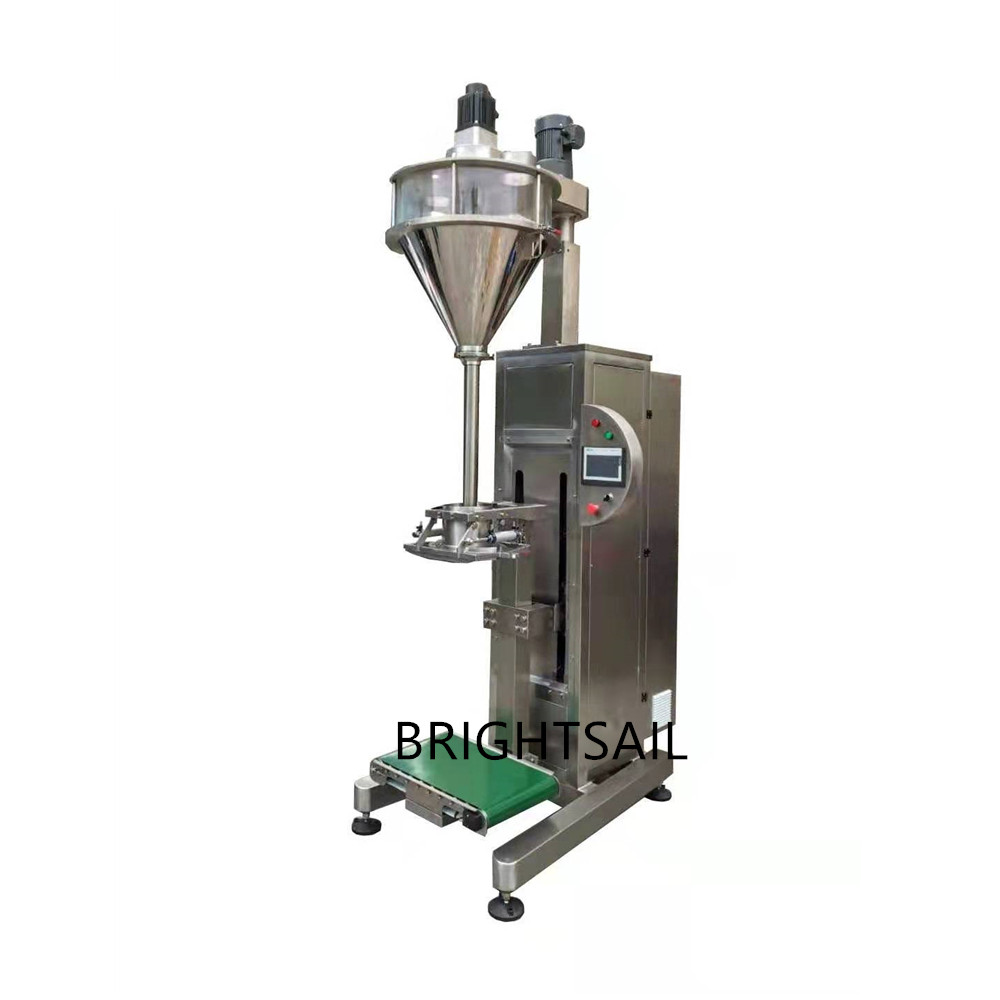

Our BSPM-B100 big powder packaging machine is designed in accordance with national GMP standards, and is mainly developed and designed for ultra-fine powder that is easy to dust and high-precision packaging requirements. According to the signal given by the weight sensor installed under the container, it completes two-speed filling, metering, and lifting. It is suitable for packaging additives, carbon powder, dry fire extinguisher powder, other ultra-fine powders, and powders with high-precision packaging requirements. The main body of the machine is made of 304 stainless steel, and the motor, cylinder, electrical accessories, pneumatic components, etc. are all selected well-known brands, or customers can specify brands.

Features:
1. A weight sensor is installed under the container tray, fast and slow filling according to
the preset weight to ensure high packaging accuracy.

2. Servo motor drives the tray up and down, the lifting speed can be set arbitrarily, and
basically no dust is raised to pollute the environment during filling.

3. Servo motor and servo drive control screw, stable performance and high precision.

4. PLC control, touch screen man-machine interface display, easy to operate.

5. All stainless steel structure; combined material box, easy to clean.

6. The filling head is equipped with an adjustable height device, which can easily achieveavariety of specifications for packaging.

7. The fixed screw installation structure will not affect the material properties during filling.

8. Work flow: manual bagging or canning → container raising → fast filling, while the
container drops → weight reaches the preset value → slow filling → weight reaches the
target value → stop → manually take out the container.

9. Pneumatic bag clamping device and can holding device are available for selection, just
choose different devices to meet the requirements of canning and bagging.

Packing Process:

Screw feeder → ultra-fine powder packaging machine (with lifting) → heat sealing machine→ sewing machine + conveyor belt.

Brief Description:

1. This bag packaging production line is configured in accordance with national standards, andtheentire production process is highly automated and meets Chinese production standards;
2. Introduction of the production linea. Brief description of machinery and equipment (1)The appearance and material contact parts of the supporting production line of this productionlineare made of 304 stainless steel, and all machine structures are selected and designed in accordancewith food hygiene standards;(2)The materials of the containers in contact with the materials are all food-grade SUS304or food-grade PP materials;(3)The structures that are frequently dismantled and washed are connected by easy-to-disassembleparts to ensure convenient handling and sanitation when shifting or changing products;b. This set of production line requires 1-2 employees during normal production.

Jiangyin Brightsail  machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.

Q: Does the Big Packer For Superfine Powder Machine  have GMP certificate?

A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.

But our machine can be applied in food and pharmaceutical’s production

Q: What certificate do you have?

A: We have CE,ISO certificates.

If you need other certificates, please contact us to check.

Q: Can I see the working Big Packer For Superfine Powder  Machine in user’s factory?

A: It depends, you shall contact our sales to check.

  And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.

This is our BSPM Big Packer For Superfine Powder Machine

It is Suitable for food, chemical, pharmaceutical,spice ,coffee,milk powder
