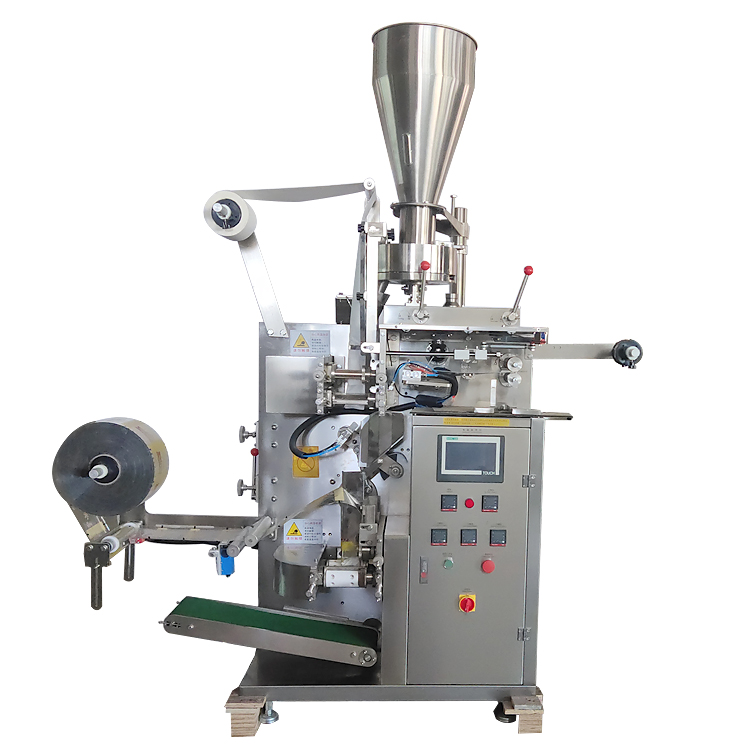

BS-NW160 Inner And Outer Bag Packaging Mchine
Features:
- It is suitable for the one-time packaging of small particles such as tea, medicinal tea, healthtea, grass roots, etc. inside and outside the bag.
- The film pulling of the inner and outer bags is controlled by a stepping motor, with stablebaglength and accurate positioning.
- Using PID to adjust the temperature controller, the temperature control is more accurate.
- PLC is used to control the action of the whole machine, and the man-machine interfaceisdisplayed to ensure the hygiene and reliability of the product.

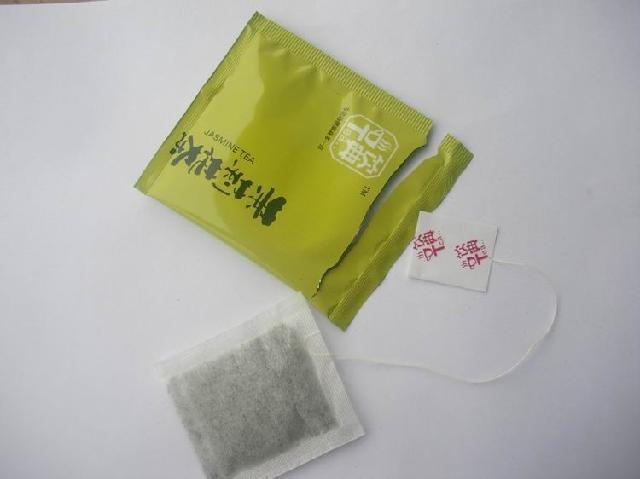

- Packaging materials: tea filter paper, cotton thread, composite film and label.
|
Model |
BS - NW160 |
|
Sealing type |
Trilateral sealing |
|
Measuring range |
3 - 10 g（ 1.6 ~ 26 ml） |
|
Inner bag size |
L：50 - 70 mm W ：45 - 80 mm |
|
Outer bag size |
L：80 - 120 mm W：75 - 95 mm |
|
Packaging speed |
30 - 40 bags / min |
|
Overall dimension |
1750mm*740mm*1950 mm |
|
Total weight |
500 kg |
|
Power |
AC220V/ 50Hz /3.7kw |
|
Air supply needed |
≥0.4m /min |
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: How many countries have you exported?
A: Till 2023, we have exported machines to more than 84 countries. Including USA, European countries,Japan, South American countries,Australia,New Zealand,and lot of Middle-east Asia countries,Southeast Asian countries and Africa.
Q: Can I see the working Inner And Outer Bag Packaging machine in user’s factory?
A: It depends, you shall contact our sales to check.
And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.
Q: Does the Inner And Outer Bag Packaging machine have FDA certificate?
A: Our machine can meet the requirements of FDA, but our machine is not food or pharmaceutical products, our machine doesn’t have FDA certificate.
But our machine can be applied in food and pharmaceutical’s production, we a lot of customers who are using our machine to produce food, or pharmaceutical products.
This is our Inner And Outer Bag Packaging Mchine,
Its suitable for the one-time packaging of small particles such as tea, medicinal tea, health tea, grass roots, etc
