Introduction of High Speed Small Hammer Mill :

This is our BS series small hammer mill with high speed rotating speed.

For spice and herb powder grinding, it has a good grinding effect, most spice powder can reach 12~80 mesh.

For grains and other food like sugar,salt, the powder size can be 12~120 mesh;
t can also grind chemical and pharmaceutical materials into fine powder.

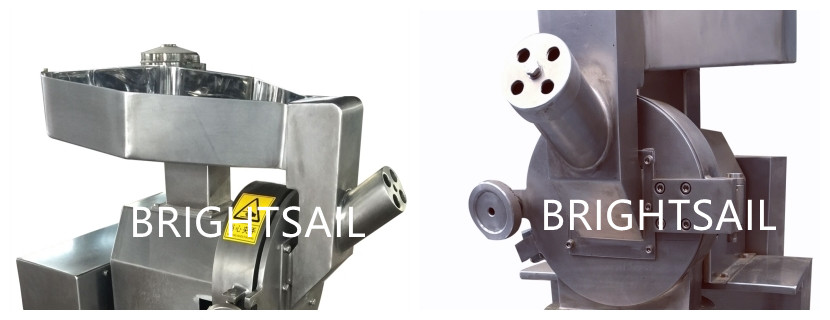

We have two type of knives for you to choose.

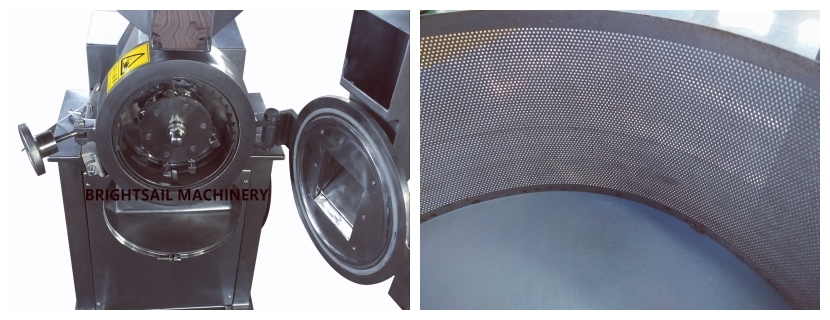

Hammer type is suitable for making dry materials into fine powder,
and knife type is suitable for making dry materials into small granules/flakes.

Technical data of High Speed Small Hammer Mill:

Model	BS-180	BS-250	BS-350
Feed size (mm)	< 10 (granule) < 15*40*2 (leaf)
Grind fineness (mesh)	10-120	10-120	10-120
Capacity(kg/hr)	3-50	10-100	30-300
Grind chamber diameter(mm)	200	270	380
Rotor speed (rpm)	5900/8600	4200/6200	2200/4400
Motor (kw)	2.2	5.5	11
Overall size (mm)	840*470*1020	930*600*1200	1150*700*1600
Weight(kg)	~112	~210	~430

Main features of High Speed Small Hammer Mill

1)When capacity is low, single mill machine is very suitable.
2)The single mill is easy to clean, simple in structure and few occupied space.
3)Price is low,it can also solve the problem of tight budget.
4)Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

Jiangyin Brightsail Machinery focuses on one-stop overall powder process solutions.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.

Q: To get a detailed quote or to choose a suitable model grinder, what buyer shall provide?

A: 1) raw material name?

   2) capacity the buyer needs to produce? kg/hr

   3) target powder size the buyer needs? like 20 mesh, 30mesh, 40mesh,60 mesh.....etc

(if you don’t know, you can just tell us what will you grind)

Q: Can I see the working High Speed Small Hammer Mill in user’s factory?

A: It depends, you shall contact our sales to check.

  And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.

Q: What is the material of the High Speed Small Hammer Mill?

A: Stainless steel 304 is our standard material.

Sometimes,we also use SS316 as customer requests.

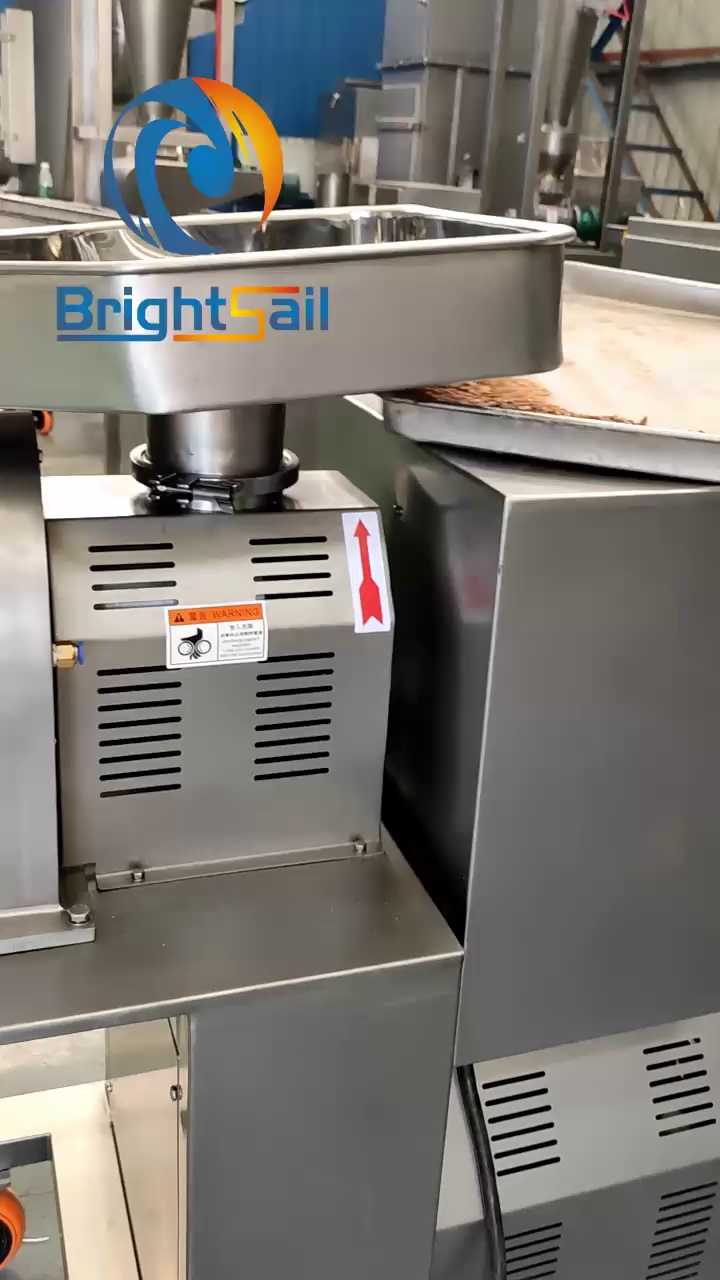

In the video ,is our BS-320 High speed small hammer mill ,

we used to make make licorice powder

We tested moringa leaf used BS-180 small hammer mill,

It is also suitable for grinding herbs, spices,chemicals....etc
