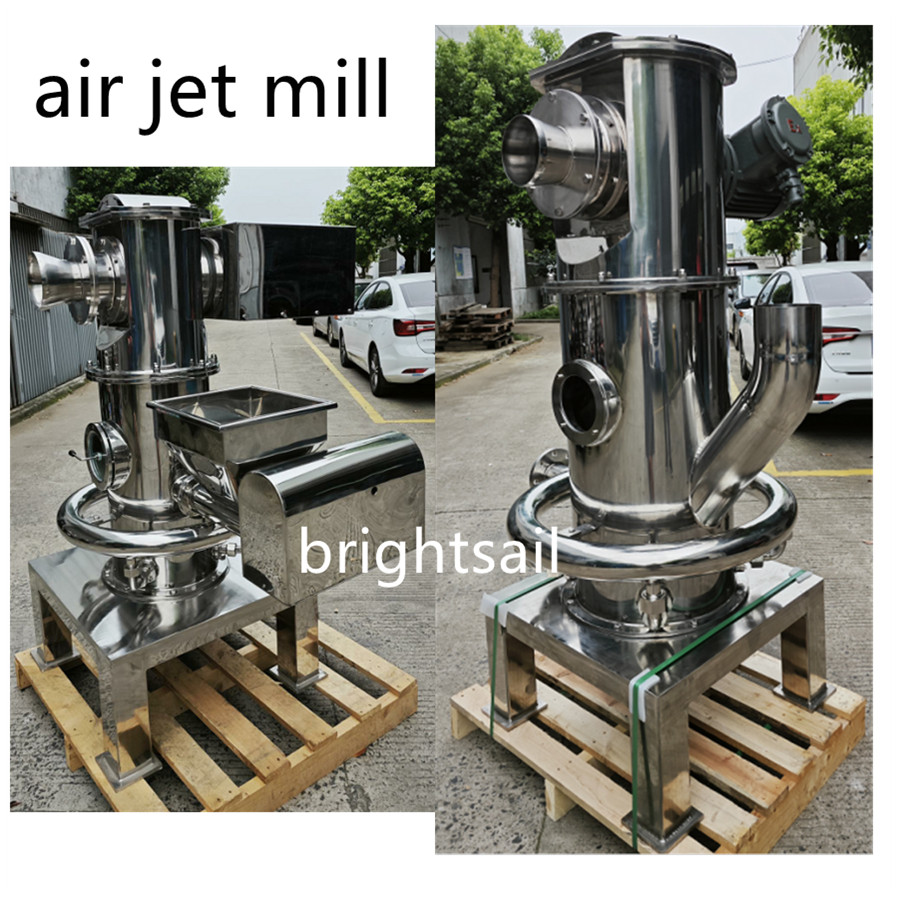

BSK Air Jet Mill
Main application of our BSK jet mill
- Abrasive products
- Sticky products
- Mineral fillers
- Ceramic fillers
- Food
- Chemical products
- Agricultural chemicals
Flow Chart of our air jet mill machine micronizer
Working method of our air jet mill machine
Air Jet Mill is a pulverizing machine which uses high-speed compressed air to grind dry-type materials into ultra fine powders.
The main part consists of screw feeder, milling nozzle, milling chamber, classifier chamber, and etc.
In adjustable speed, screw feeder doses the raw materials stably and continuously into the jet mill. Compressed air reaches a very high speed when rushing through the special designed nozzles.
Carried by the compressed air, materials crash in the midst of air flow, where they grind with each other by impacting repeatedly.
The ground materials fly upwards with the rising air, entering the classifier chamber, where ground materials facing two forces the centrifugal force result from the fast rotation of classifier wheel and the pneumatic attraction by the suction fan.
If the ground materials are finer than grading range, pneumatic attraction is stronger, so materials pass through the classifier wheel and move on to the cyclone and dust collector to be collected. In contrast, coarser materials are rejected back to the milling chamber to be re-milled.
|
Model |
BSK-100 |
BSK-200 |
BSK-300 |
BSK-400 |
BSK-600 |
BSK-800 |
|
capacity(kg/h) |
0.5-10 |
10-100 |
80-200 |
100-500 |
200-700 |
400-1500 |
|
Air consumption(m³/min) |
3 |
4.5 |
6 |
10 |
20 |
40 |
|
Working pressure(Mpa) |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
0.75-0.85 |
|
Feed diameter |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
|
Grinding fineness(um) |
0.5-30 |
0.5-30 |
0.5-30 |
0.5-30 |
0.5-30 |
0.5-30 |
|
Energy Consumption Power(kw) |
20 |
40 |
95 |
95 |
188 |
380 |
We also have lab micronizer air jet mill
Pictures of our powder jet milling machines in user's factory
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: To get a detailed quote or to choose a suitable model grinder, what buyer shall provide?
A: 1) raw material name?
2) capacity the buyer needs to produce? kg/hr
3) target powder size the buyer needs? like 20 mesh, 30mesh, 40mesh,60 mesh.....etc
(if you don’t know, you can just tell us what will you grind)
Q: What certificate do you have?
A: We have CE,ISO certificates.
If you need other certificates, please contact us to check.
Q: How to install the Air Jet Mill machine?
A: 99% clients can install the machine by themselves under our guidance by our English electric diagram, and English manual.
Video call is also optional.
Engineer is also available to serve on site,buyer shall cover some cost.
In this Video ,is our Air Jet Mill , it is used for making super fine powder from 60~10000 mesh.
can make finer powder than Air Classifier Mill.

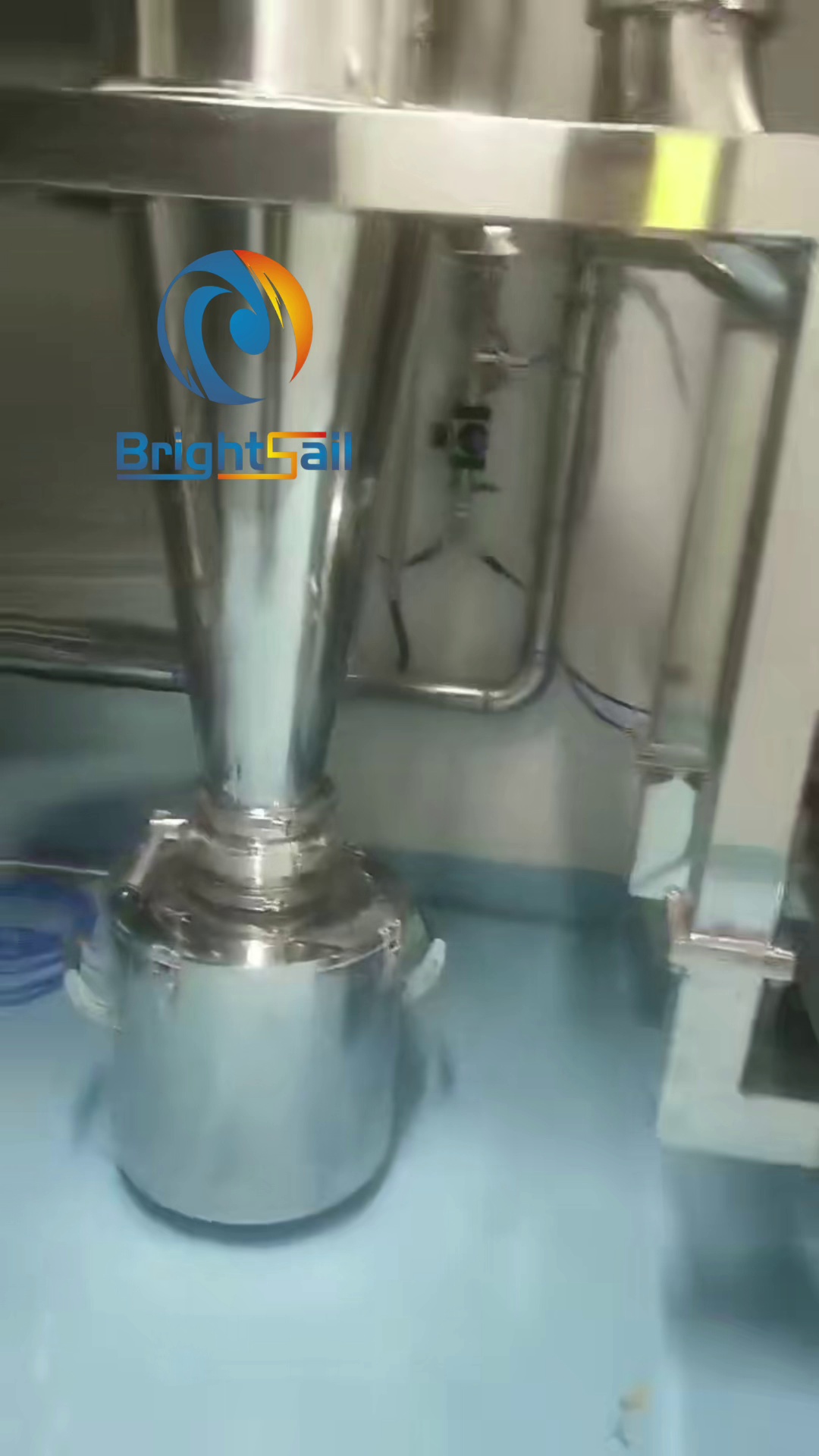

And in this video ,is our Air Jet Mill in GMP factory room
