BSU Universal Crusher
_副本.jpg)
BSU Universal Crusher
BSG powder grinding set with pulse dust collecting system (joint type & split type):
The crusher part of our BSG cyclone dust collecting grinding set also can be used as a single mill (called BSU universal grinder machine) in the first picture, it is suitable for small capacity, small space or limited budget. If you need continuous and no dust big production, the BSG grinder machine in the second picture is a better choice.
particle will continue to be crushed in the mill cavity.
|
Model |
BSU-20 |
BSU-30 |
BSU-40 |
BSU-60 |
|
Capacity(kg/h) |
20-150 |
30-300 |
50-400 |
100-800 |
|
Size of input granules(mm) |
＜6 |
＜10 |
＜10 |
＜10 |
|
Size of output granules(mm) |
20-120 |
20-120 |
20-120 |
20-120 |
|
Powder(kw) |
4 |
7.5 |
11 |
22 |
|
Speed of principal axis (rmp) |
4650 |
3800 |
3400 |
2800 |
|
Overall size(L*W**H)(mm) |
650*820*1500 |
700*900*1650 |
750*1000*1750 |
980*1250*2150 |
|
Weight(kg) |
230 |
330 |
430 |
900 |
BSG Technical data
|
Model |
BSG-300 |
BSG-400 |
BSG-500 |
BSG-600 |
BSG-700 |
|
Speed of main shaft（rpm） |
5300 |
4800 |
3800 |
3300 |
2800 |
|
Main motor (KW) |
5.5 |
7.5 |
15 |
22 |
30 |
|
Blower(KW) |
2.2 |
2.2 |
7.5 |
15 |
18 |
|
Discharge motor(KW) |
0.37 |
0.75 |
0.75 |
0.75 |
1.1 |
|
Grinding fineness (mesh) |
10-120 |
10-120 |
10-120 |
10-120 |
10-120 |
|
Capacity （kg/h） |
50-500 |
100-1000 |
300-1500 |
500-2500 |
1000-5000 |

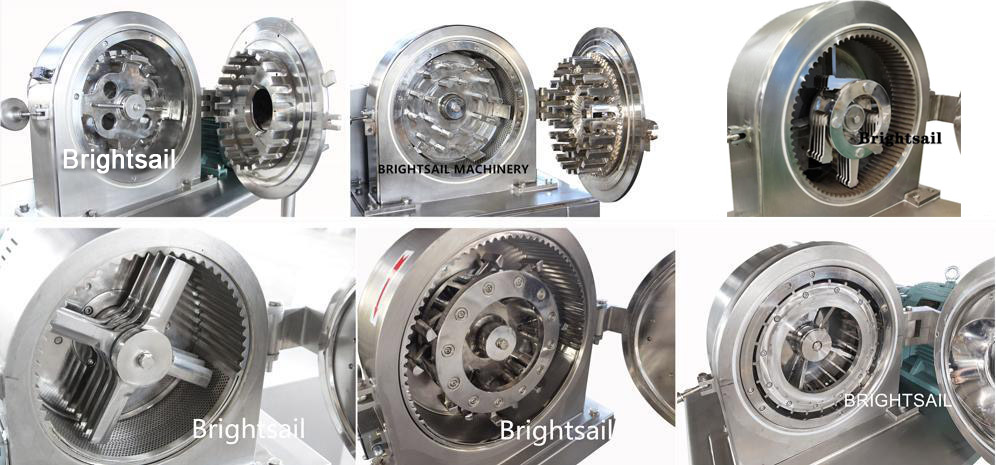

There are different kinds of crushing knives for choices, usually our clients choose hammer type, pinned disc type, and turbo type.
knives.
Pinned disc type: It is suitable for making finer powder than other types, like for grain, herb.
Turbo type: It is suitable for grinding high oil content materials, such as coffee beans, spices (coriander, black pepper...etc).
Jiangyin Brightsail machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2023 year, we have exported our machines to more than 84 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
Q: Can I see the working machine in user’s factory?
A: It depends, you shall contact our sales to check.
And most companies don’t allow strangers to visit their factory.Only a few allow,so please contact our sales to check whether it is possible.
Q: Does the Food Universail Crusher have FDA certificate?
A: Our machine can meet the requirements of FDA, but our machine is not food or pharmaceutical products, our machine doesn’t have FDA certificate.
But our machine can be applied in food and pharmaceutical’s production, we a lot of customers who are using our machine to produce food, or pharmaceutical products.
Q: Will the machine explode while working?
A: Usually, no. If the powder is explosive or your local agency has specific requests, please contact us, we can provide anti-explosion solutions for your machine.

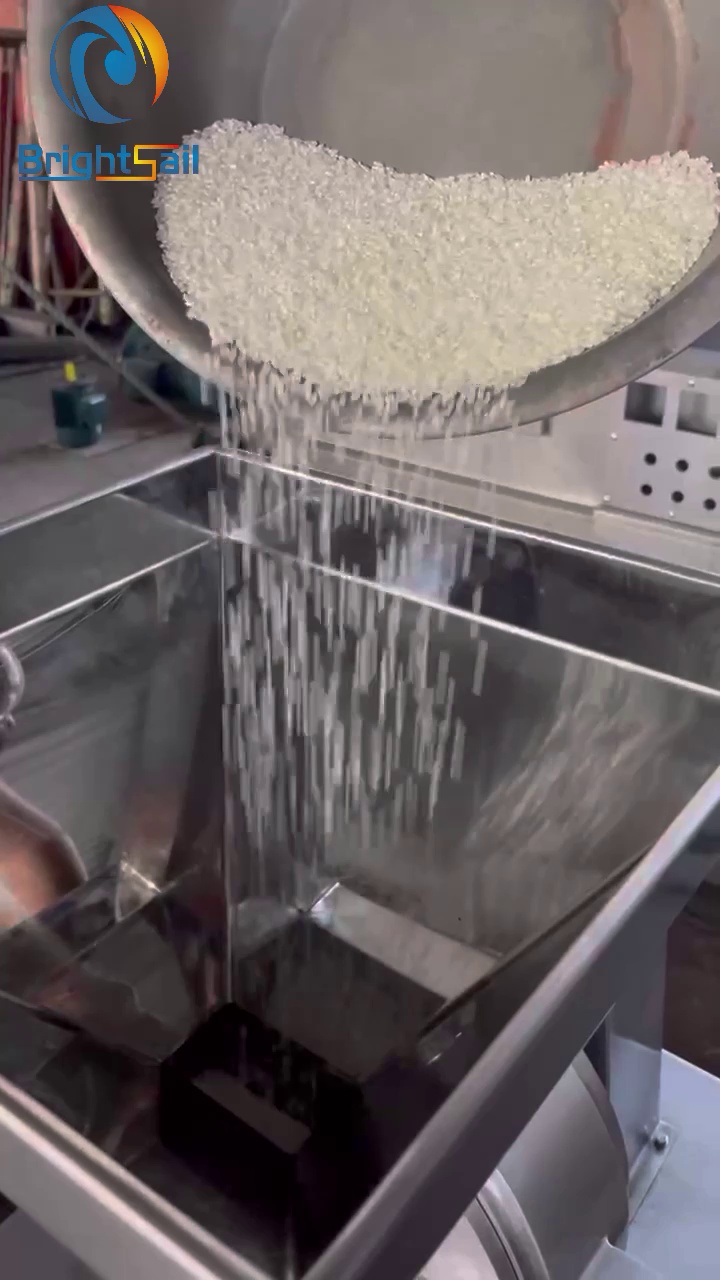

This is our BSU-20 Universal Crusher test salt
The powder size in this video is ~95% pass 100 mesh sieve.
In the video make lentil powder by BSU universal crusher, is around 80 mesh
It used BSU Universal Crusher
